Platinum 5

Main characteristics

Innovative layering
High mechanical, chemical and abrasion resistance
Ease of individualizing in tooth subtraction without losing the basic characteristics
High quality standard
Natural weaving
Excellent adhesion to resins for prosthetic bases
Designed to be unique
Finished by hand
Biocompatible pigments
Aesthetics and natural brightness comparable to natural tooth
Natural fluorescence and opalescence
Perfect match to the natural tooth thanks to the perfect combination of color, chroma and value
Works with any type of occlusion
High resistance to plaque and discoloration
High color stability
Total absence of bubbles and porosity
Natural wear and polishing ability
Perfect bond between tooth and resin for palates eliminating the inconvenience of detachment of individual elements from the prosthesis

Technical specifications

Double Cross Link 5 layers (PMMA).
Angulation 0° and 33° in the posteriors

VICKERS HARDNESS: 249N/mm2

COLOR SCALE

A1, A2, A3, A3.5, A4

B1, B2, B3, B4

C1, C2, C3, C4

D2,D3,D4

Shapes table

Upper Anteriors

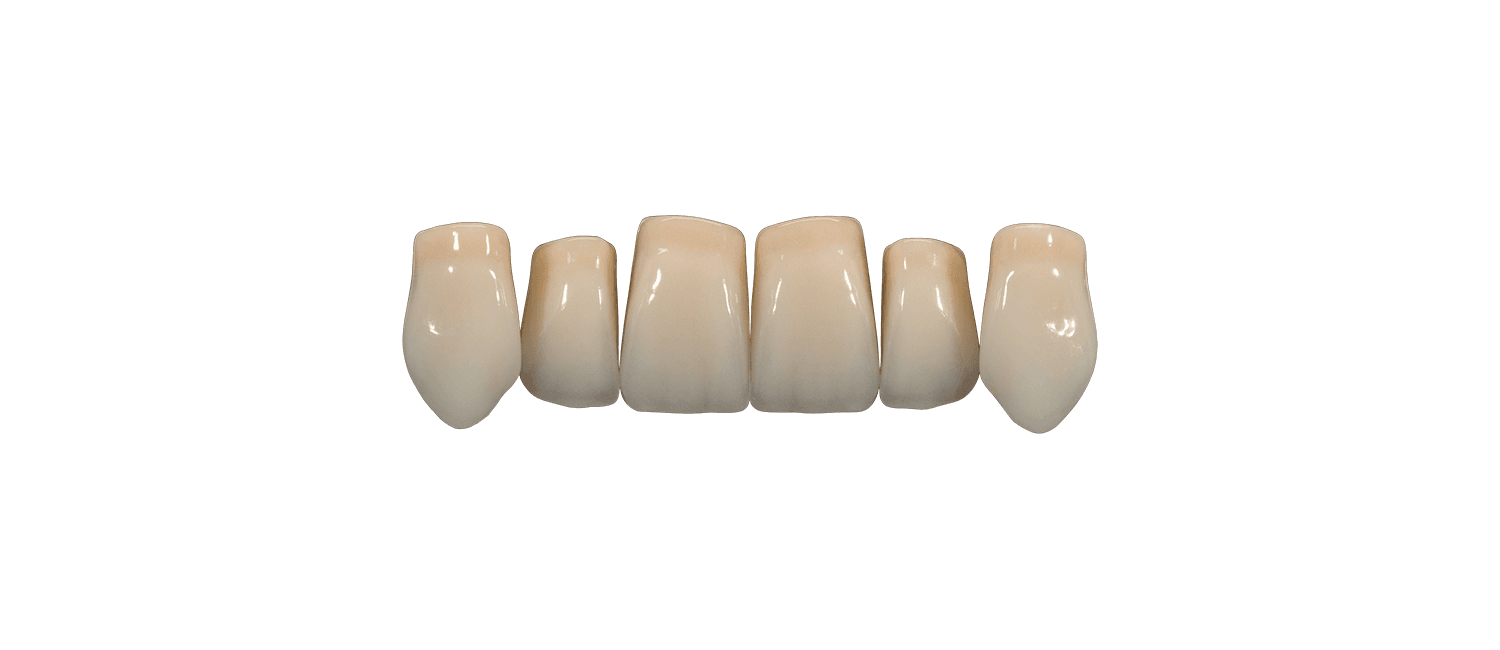

Platinum L61

L61
A 42.4
B 10.5
C 7.8

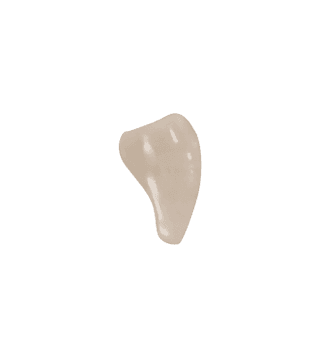

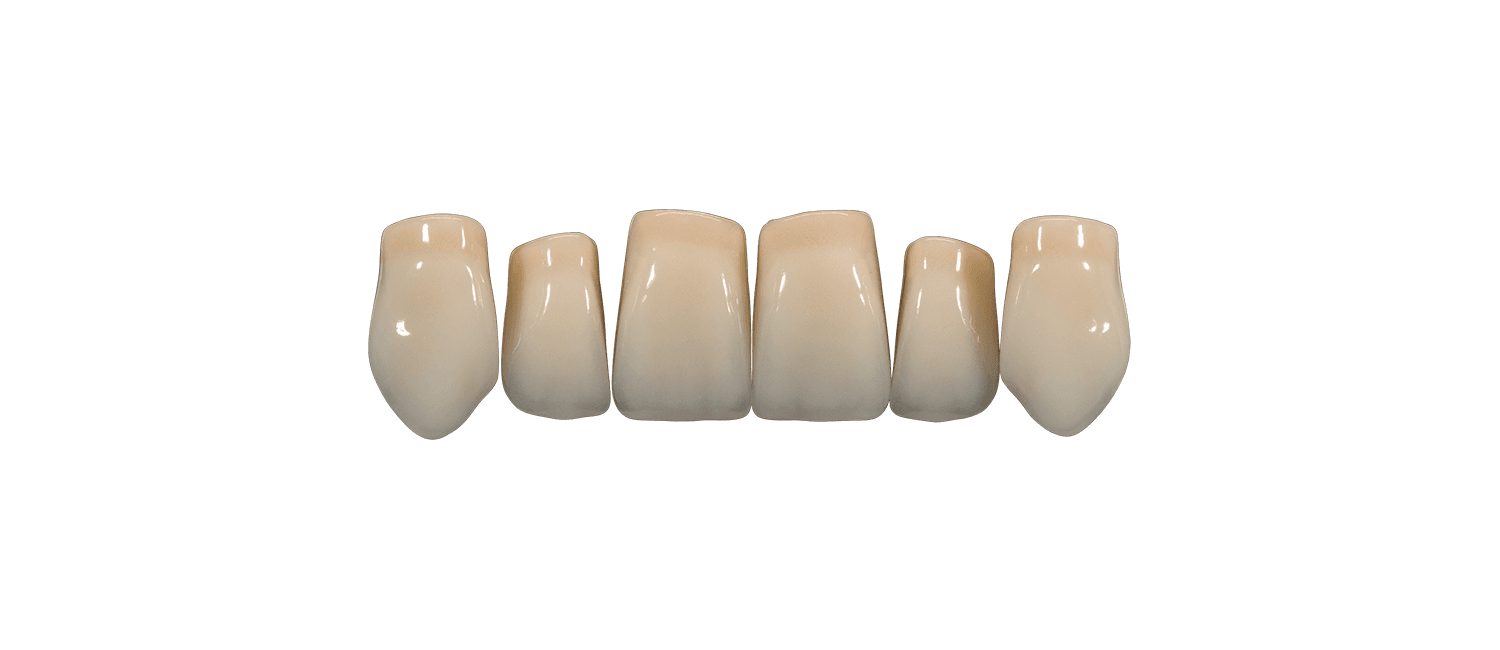

Platinum L63

L63
A 45.5
B 11.6
C 8.4

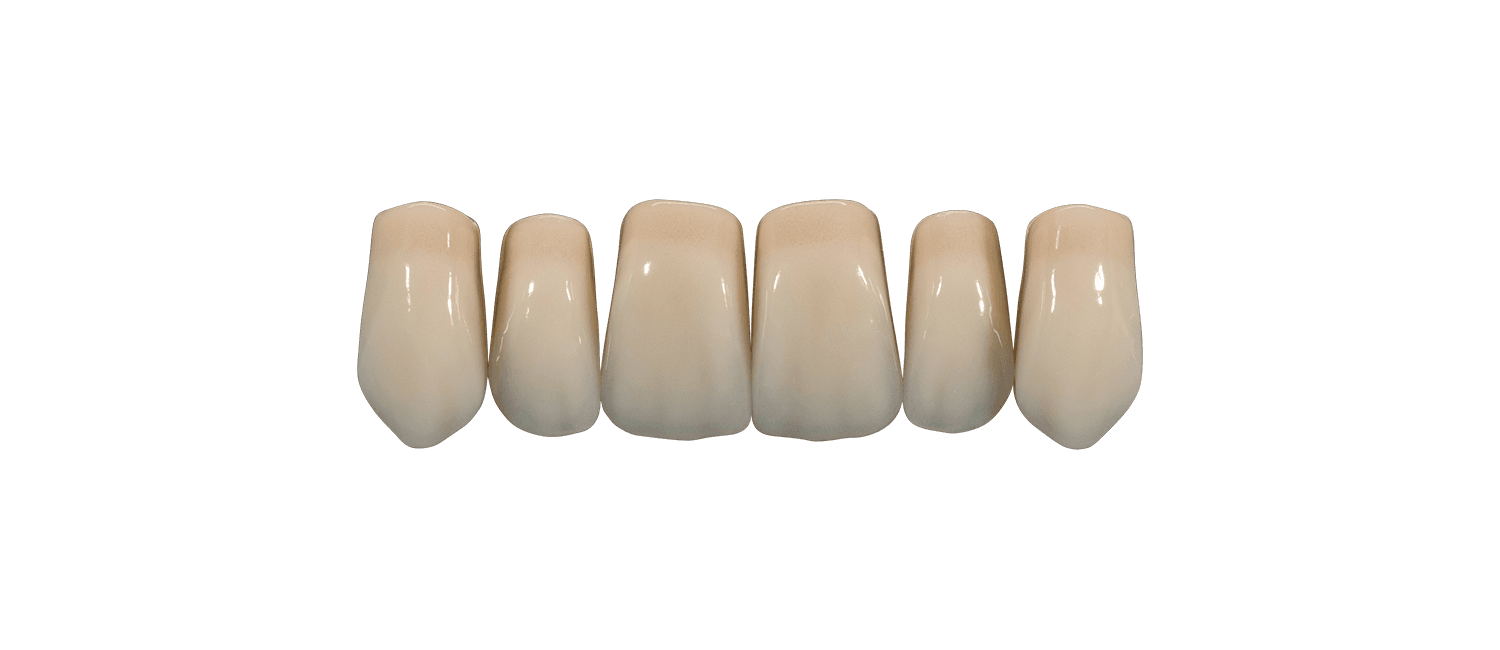

Platinum L64

L64
A 47.5
B 13.2
C 9.1

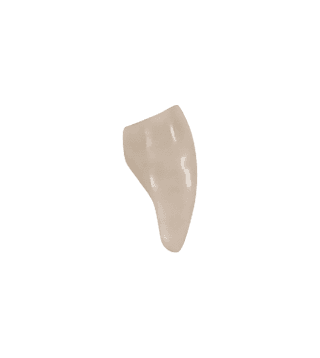

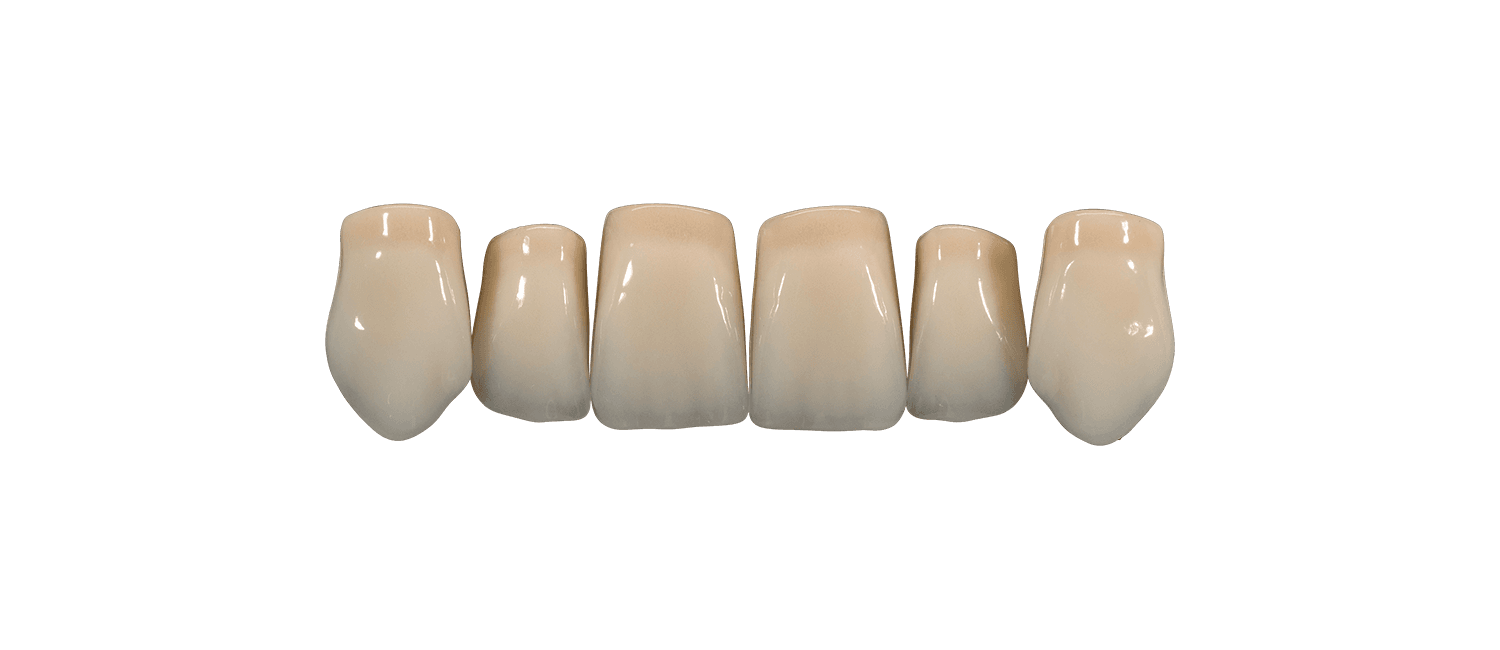

Platinum L67

L67
A 51.6
B 12.1
C 9.5

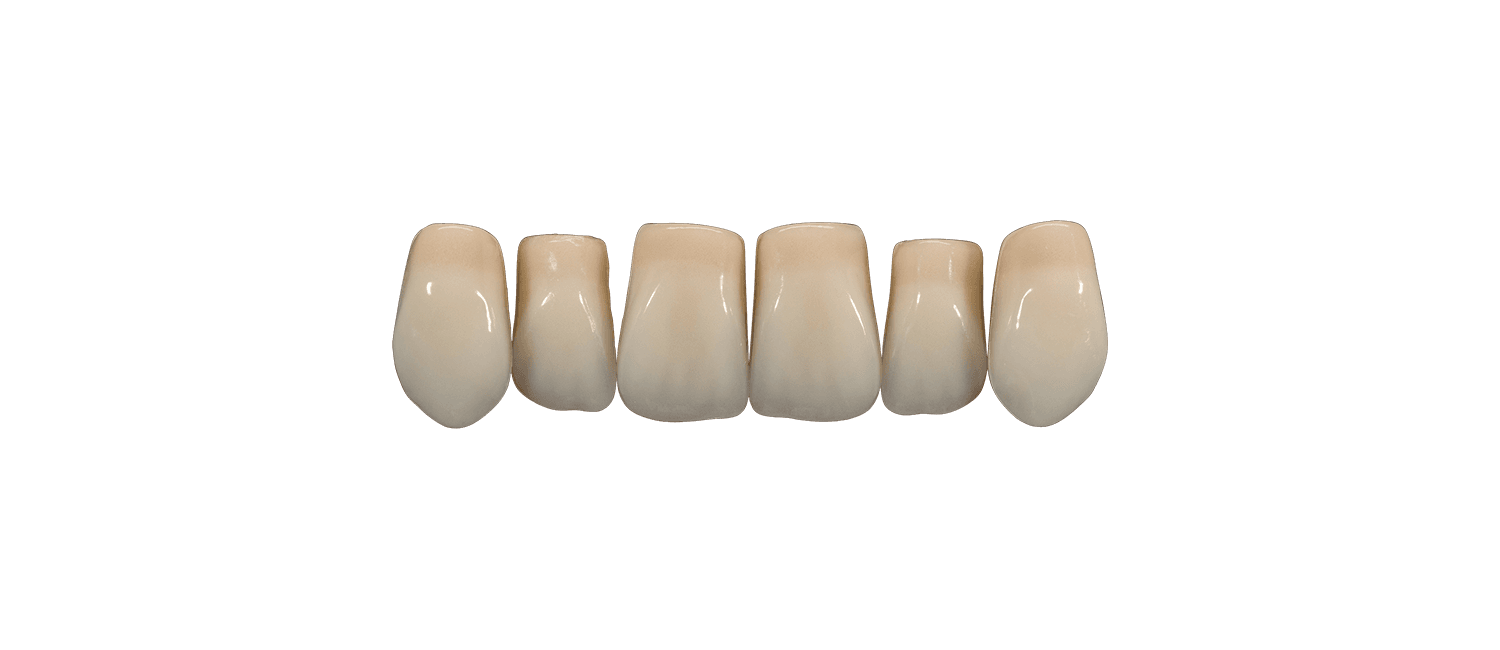

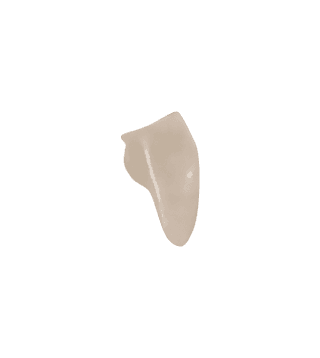

Platinum L80

L80
A 42.5
B 10.5
C 7.7

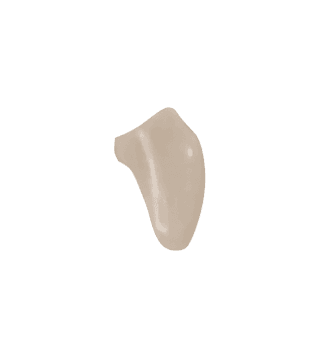

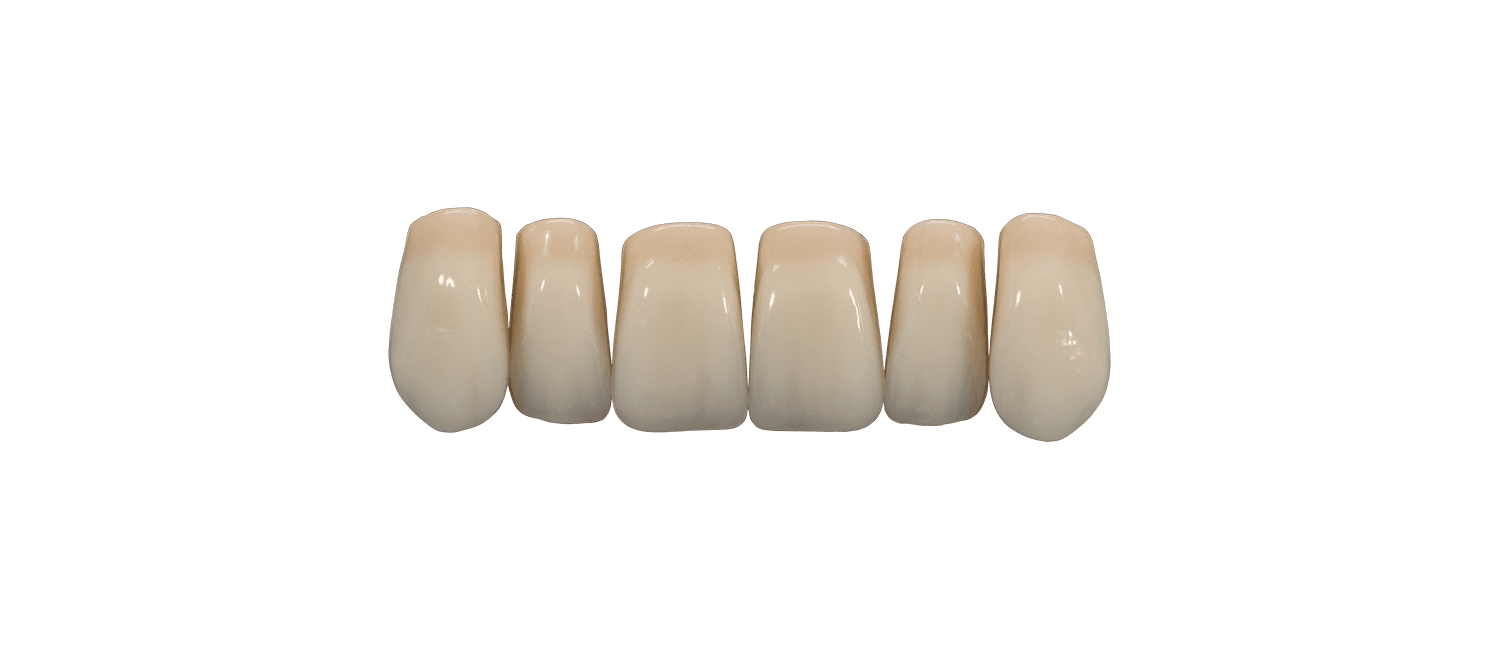

Platinum L82

L82
A 43.7
B 11.5
C 8.2

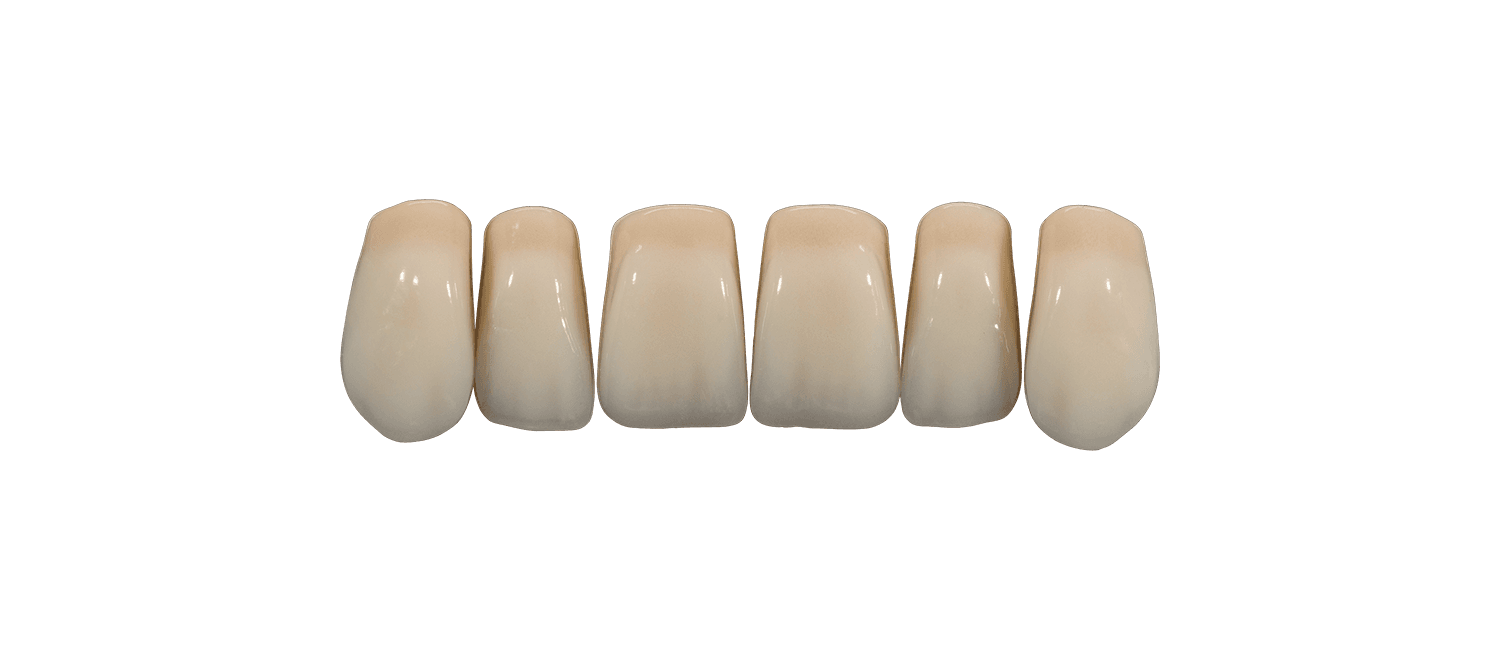

Platinum L84

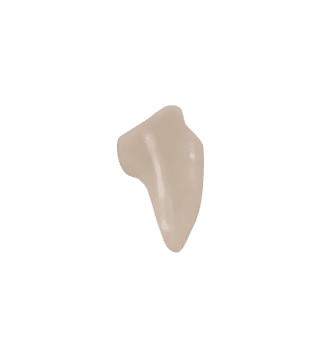

L84
A 48.9
B 12
C 9.1

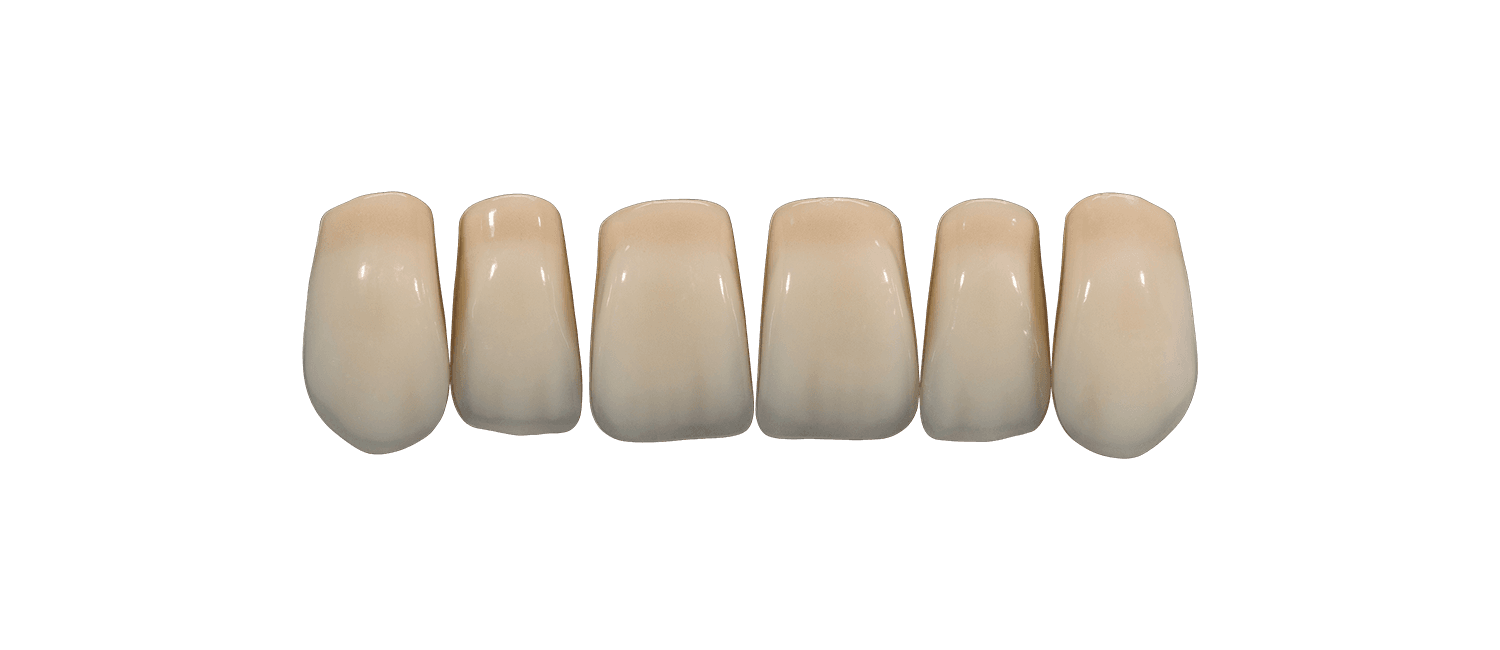

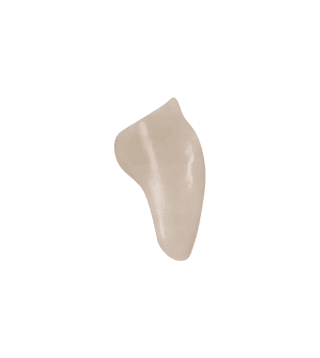

Platinum L86

L86
A 52.9
B 12.9
C 9.8

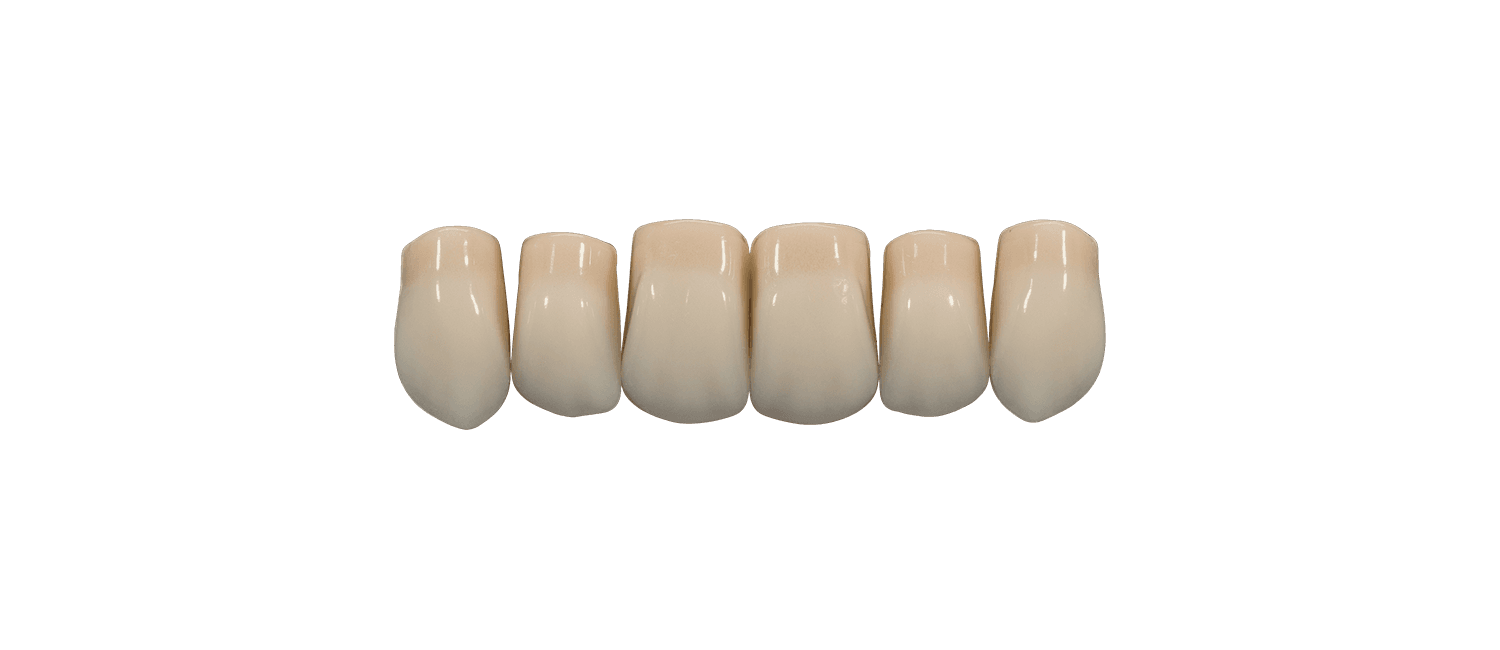

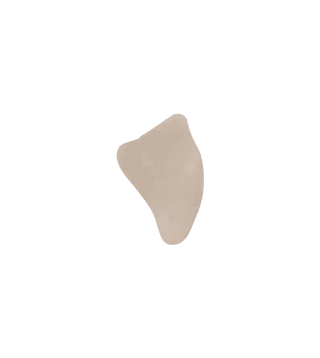

Platinum L93

L93
A 43.2
B 10.6
C 7.9

Platinum L95

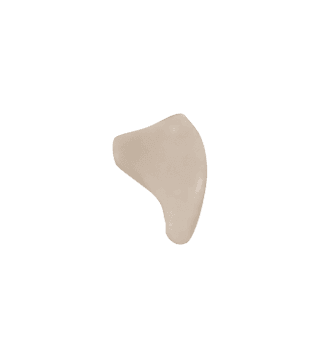

L95
A 47.8
B 11.2
C 9.1

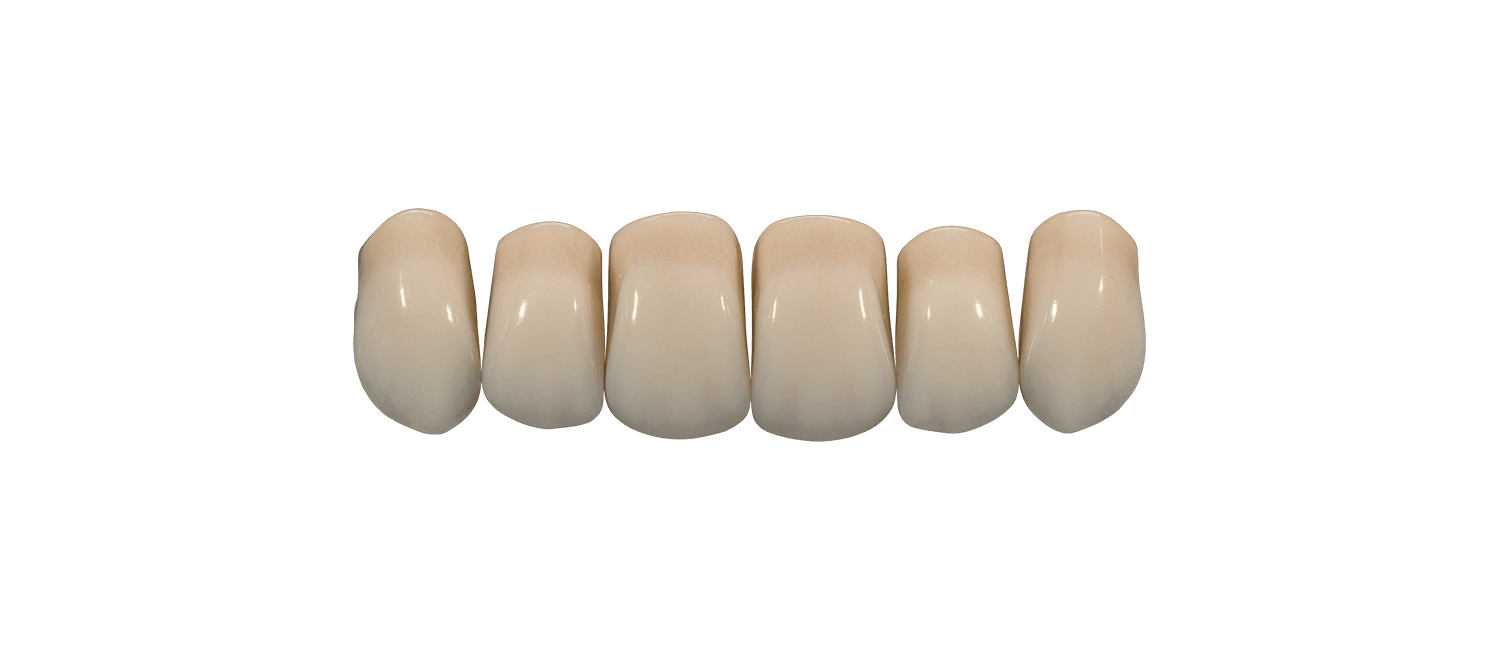

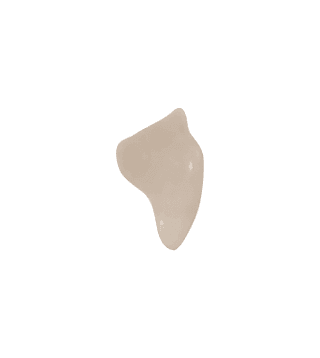

Platinum L97

L97
A 47.8
B 11.3
C 8.9

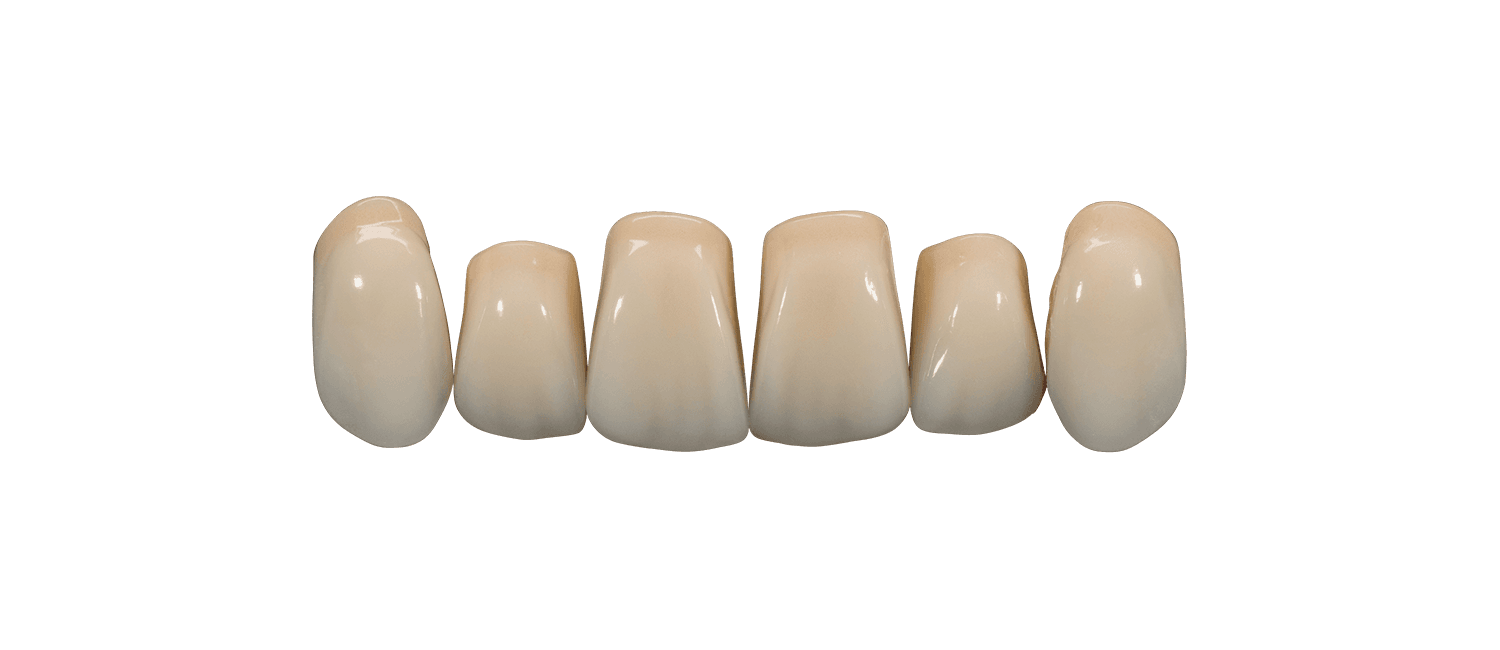

Platinum L99

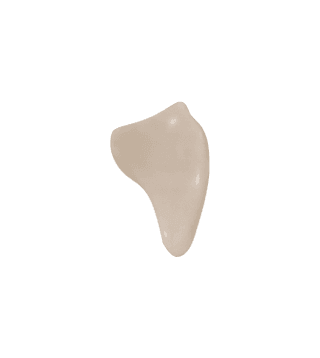

L99
A 52.4
B 13.4
C 9.8

Lower Anteriors

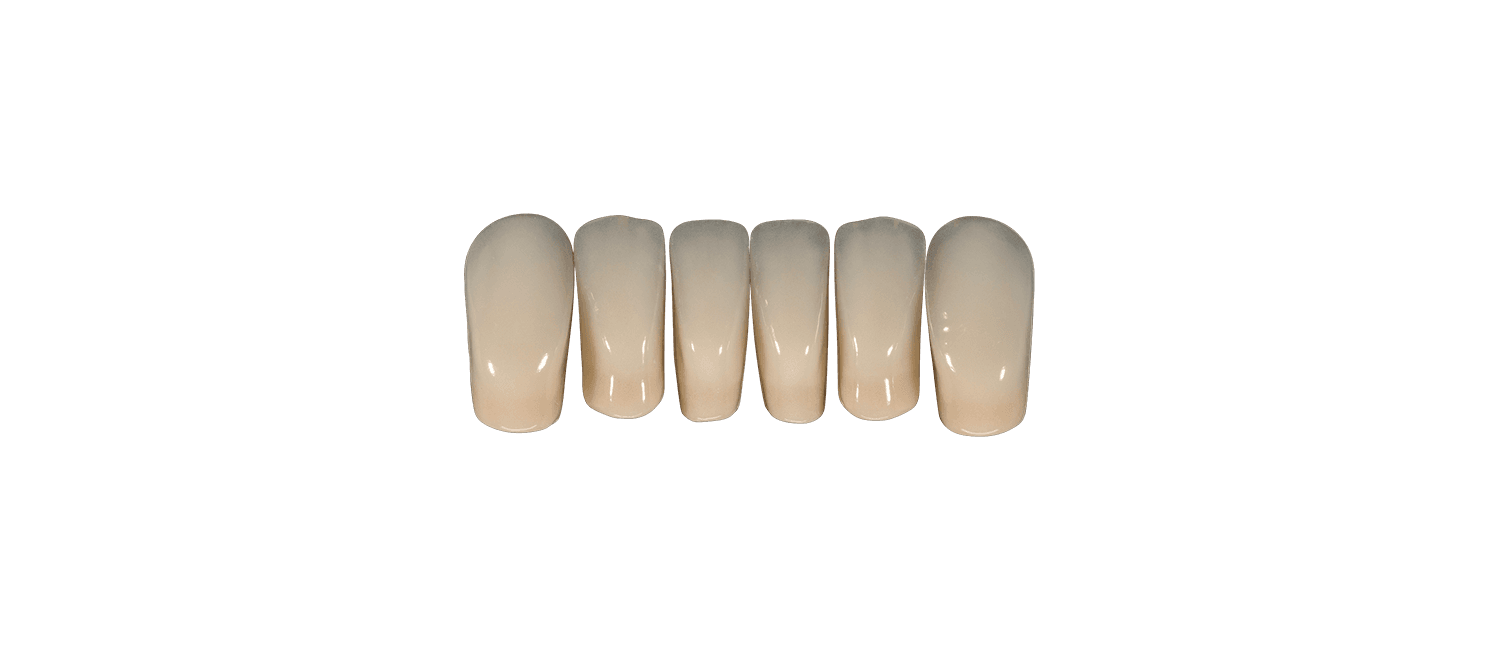

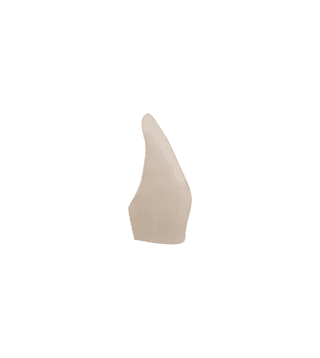

Platinum L71

L71
A 33.3
B 9.9
C 4.8

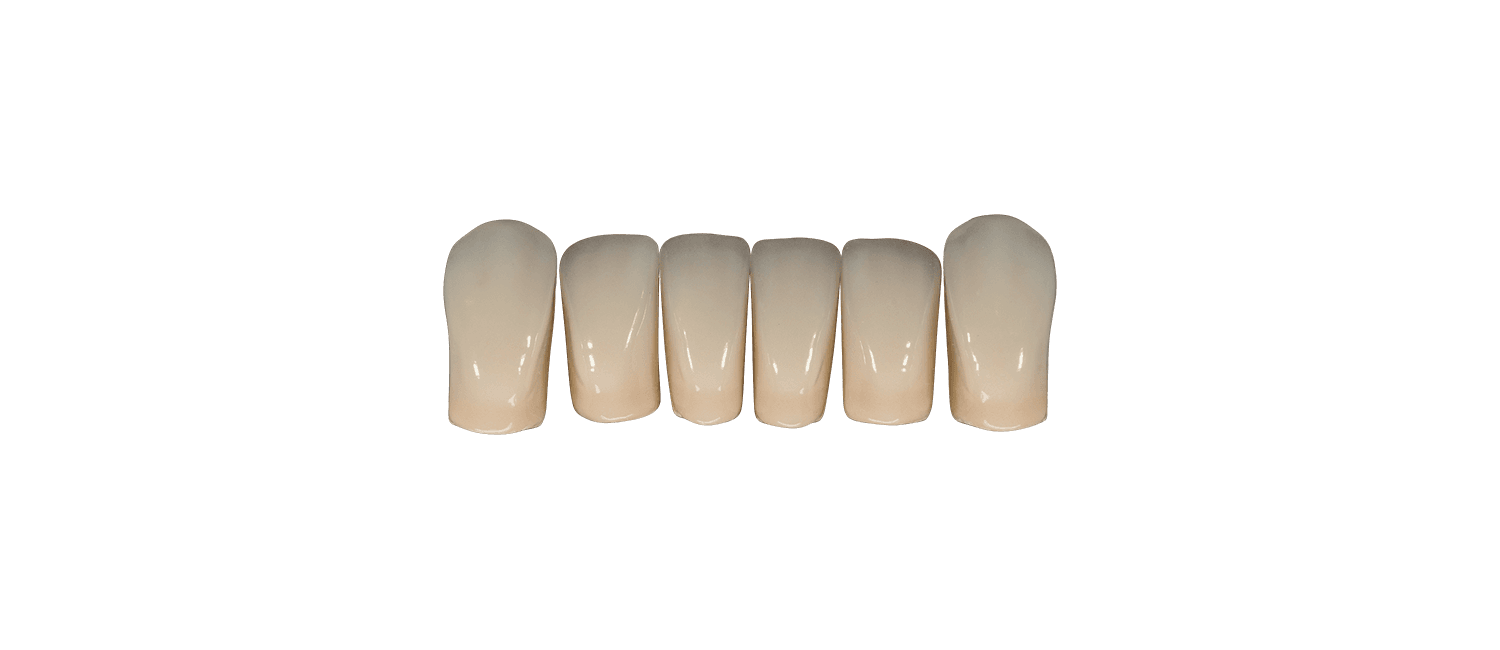

Platinum L73

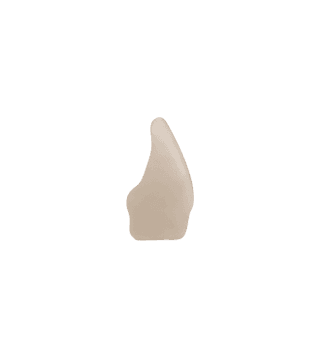

L73
A 36.8
B 9.8
C 5.4

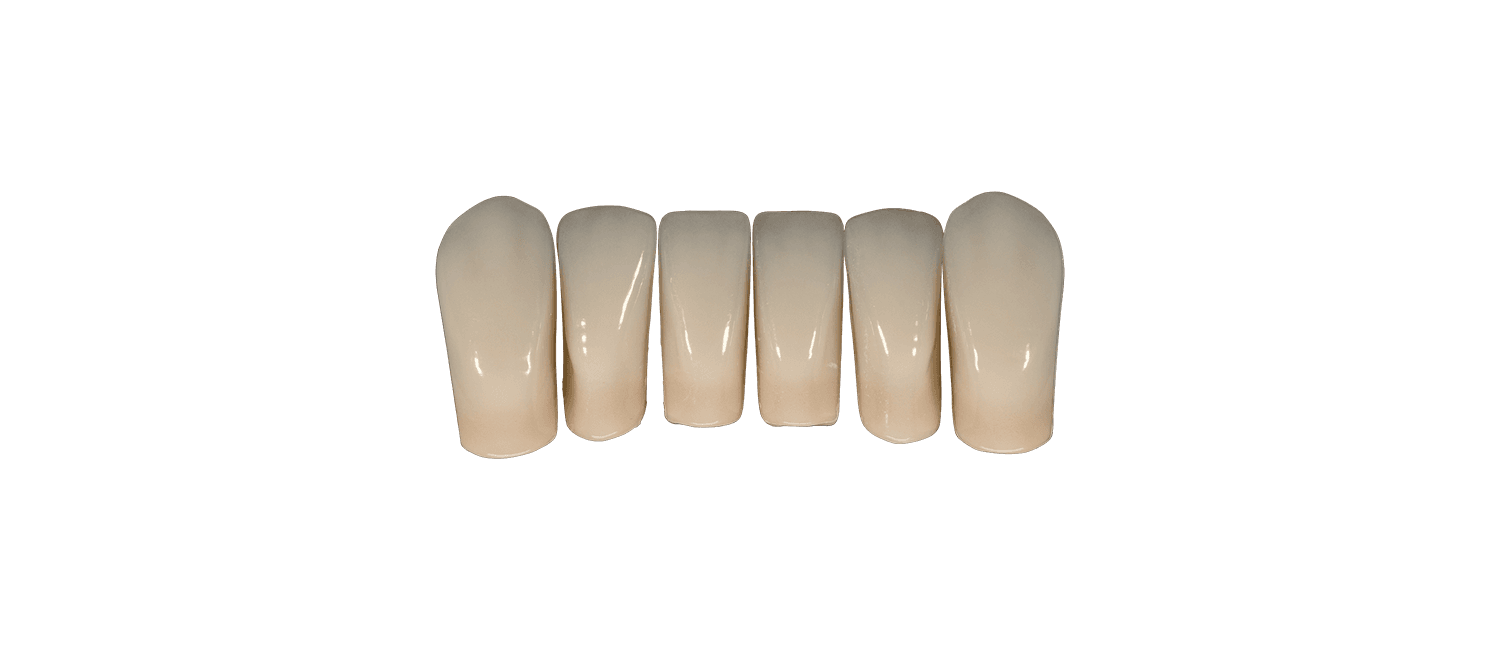

Platinum L74

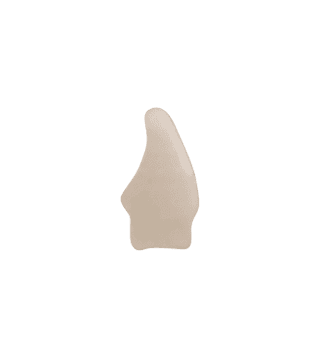

L74
A 37.3
B 10.5
C 5.4

Platinum L75

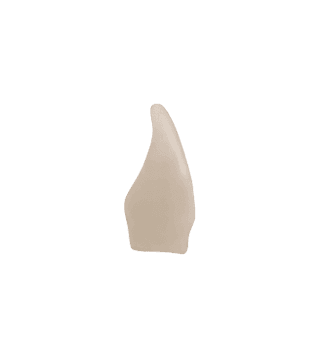

L75
A 36.9
B 12.7
C 5.5

Upper and lower posteriors

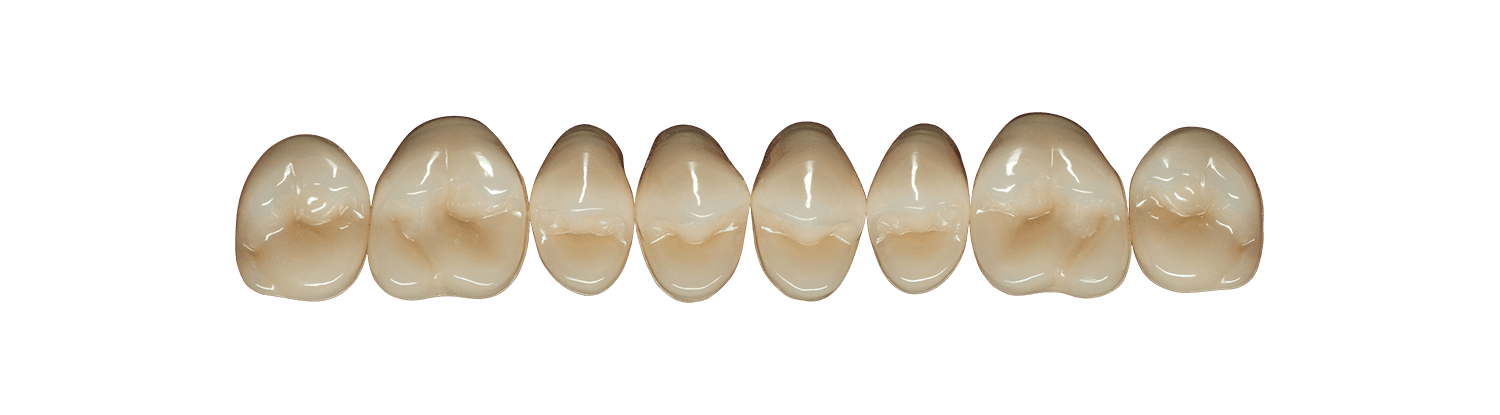

Platinum LU2

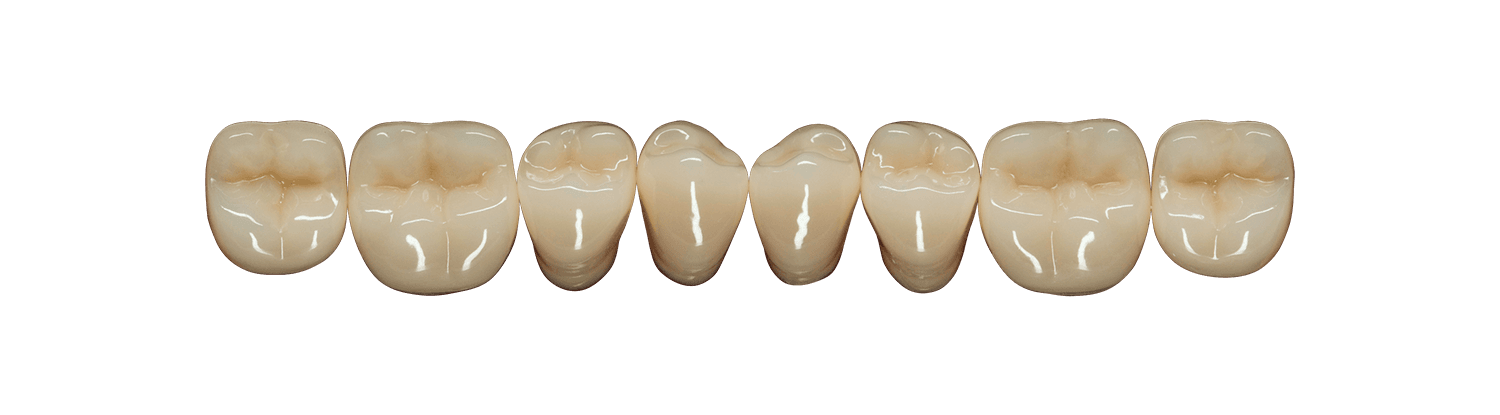

Platinum LL2

Standard

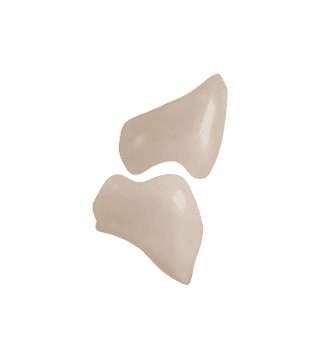

L2
X 30.5
U 9.3
Y 32
L 9.3

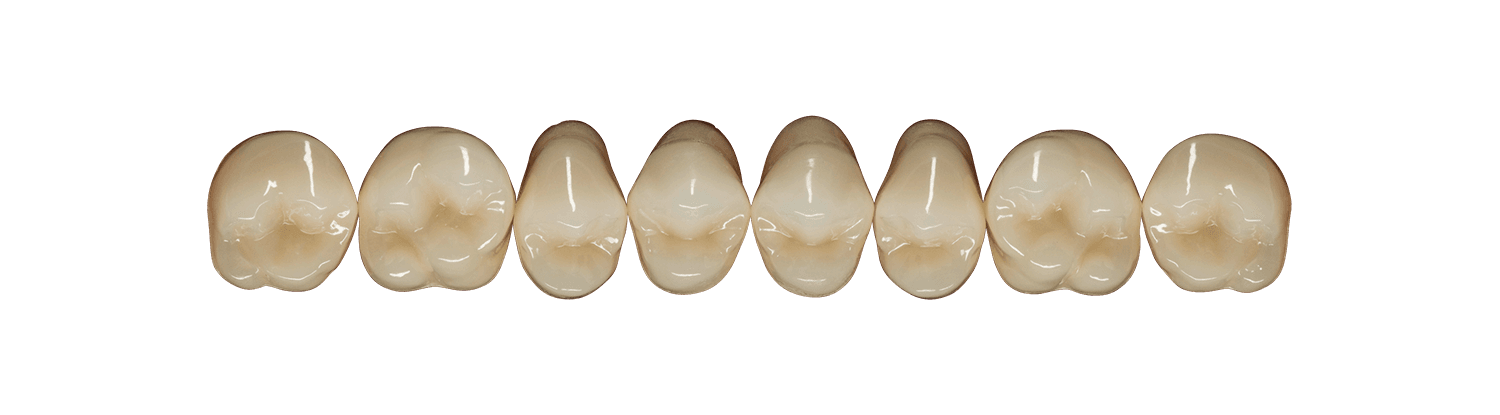

Platinum LU6

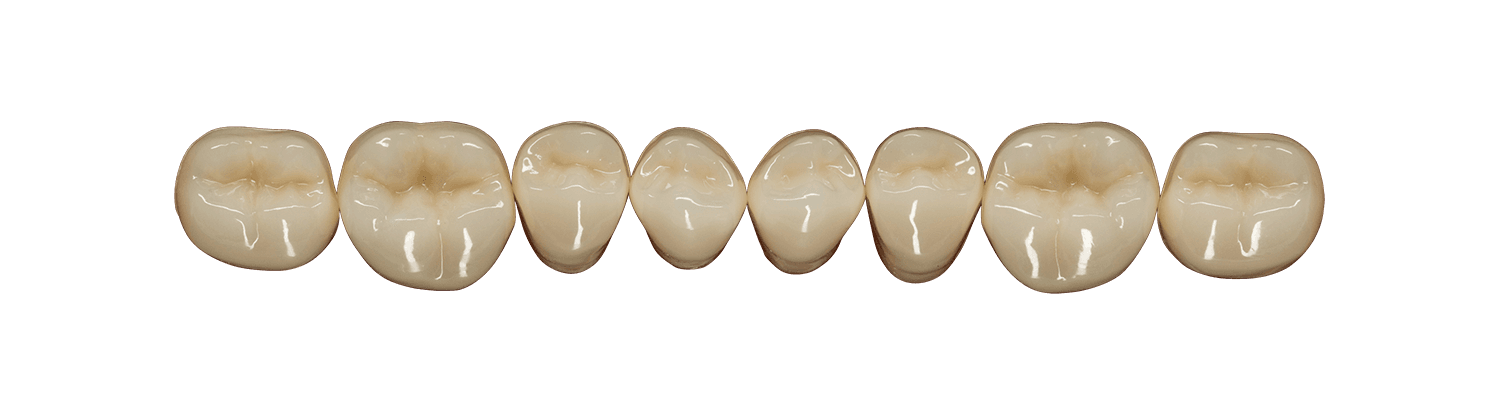

Platinum LL6

Optional

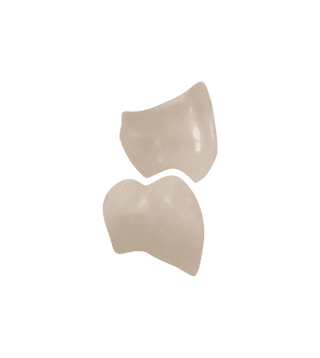

L6
X 32
U 9.7
Y 33.5
L 9.1

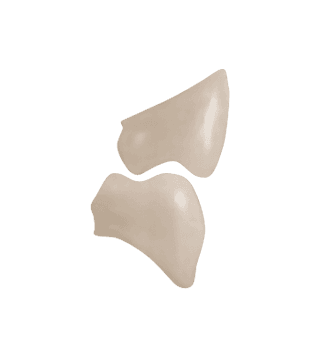

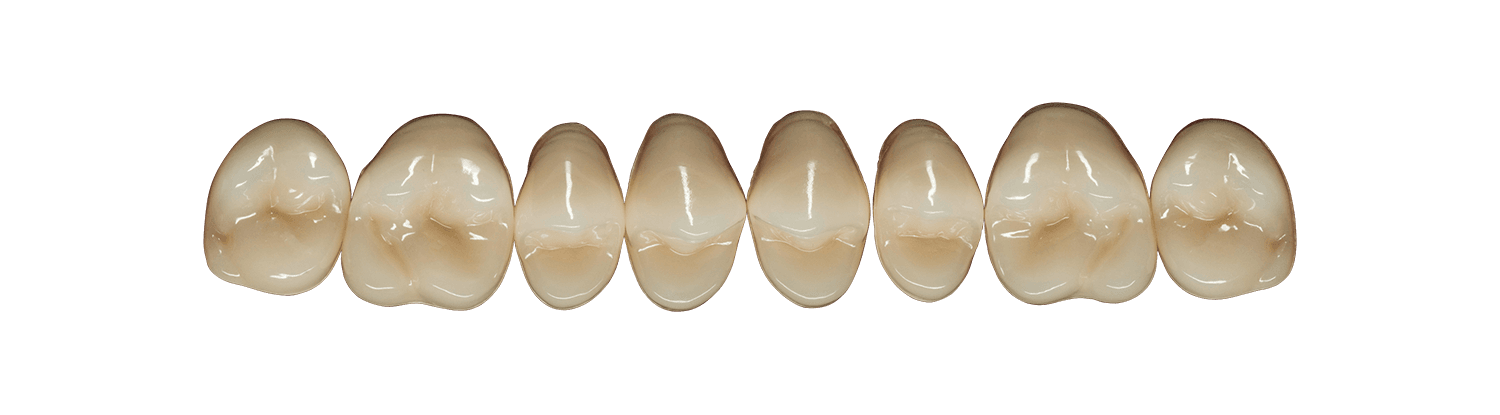

Platinum LU3

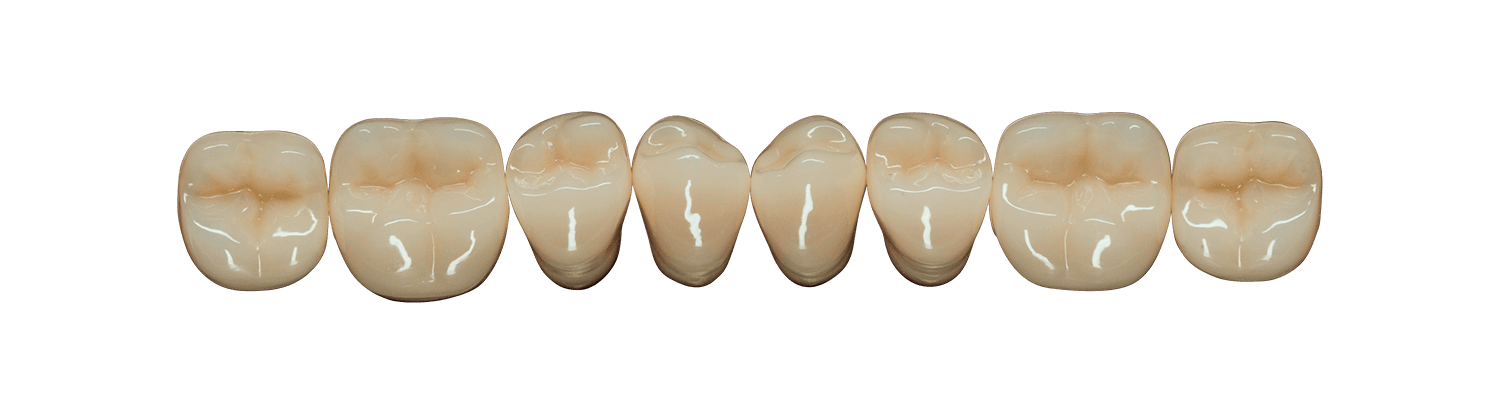

Platinum LL3

Standard
L3
X 32
U 9.9
Y 34
L 9.8

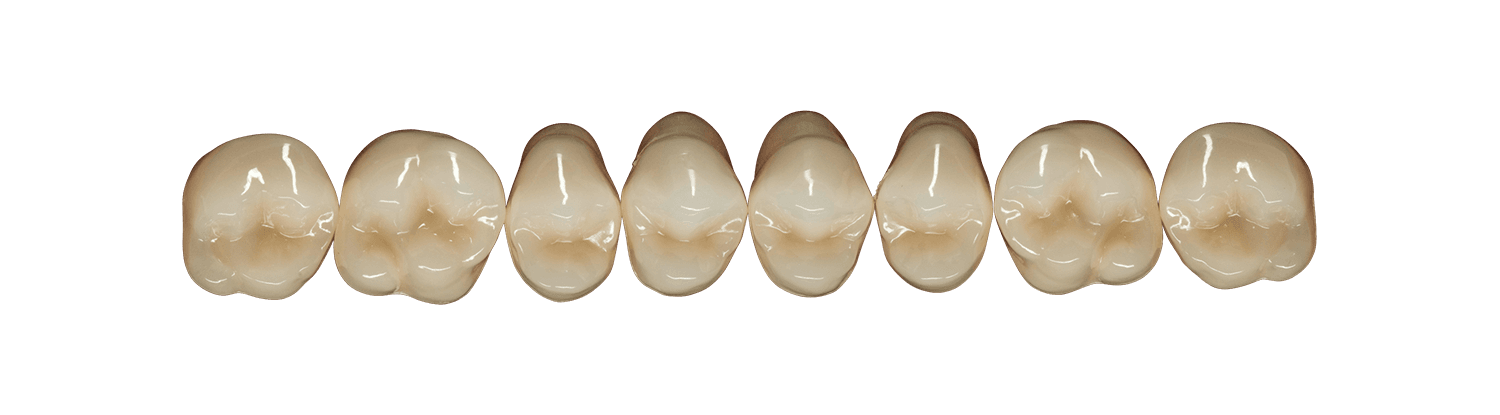

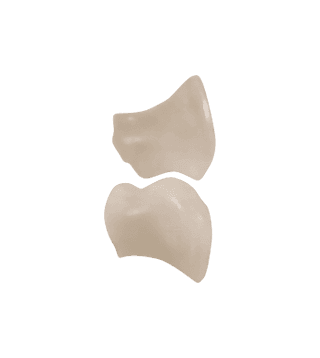

Platinum LU8

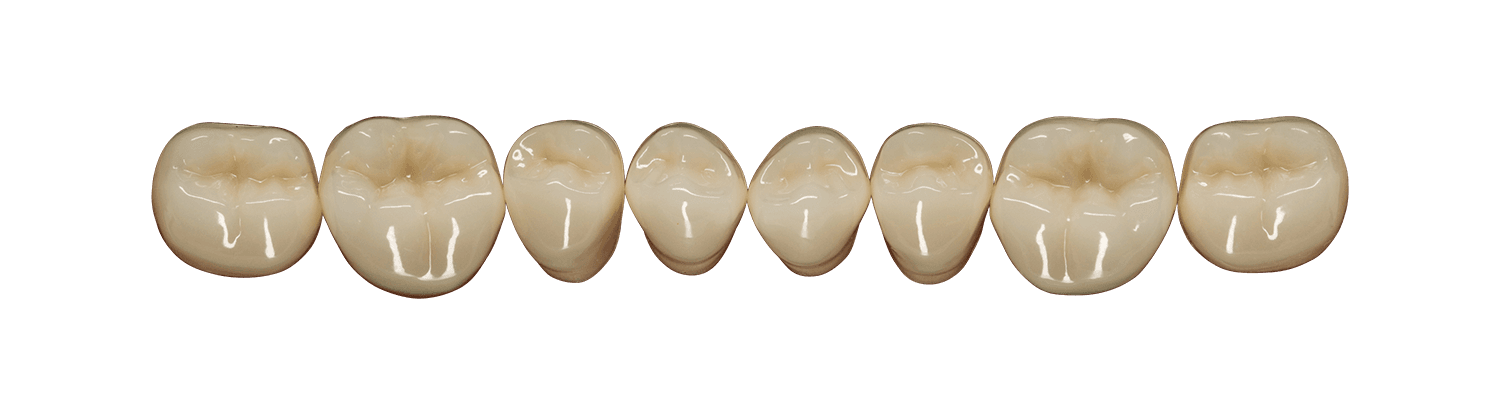

Platinum LL8

Optional
L8
X 33
U 10.2
Y 35
L 9.8

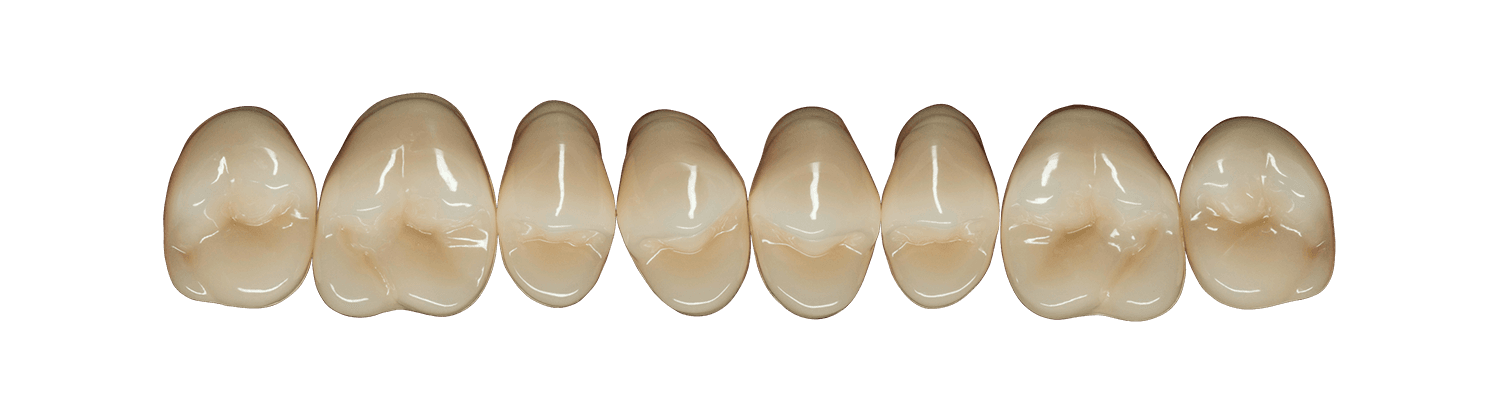

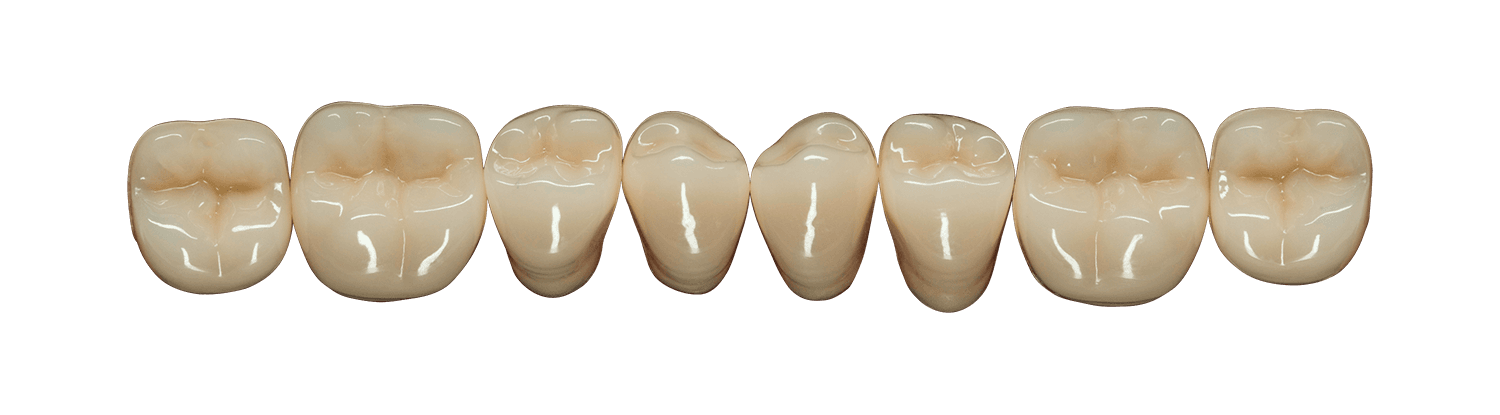

Platinum LU4

Platinum LL4

Standard

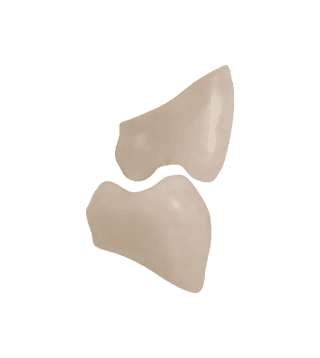

L4
X 34.5
U 10.5
Y 37
L 10.6

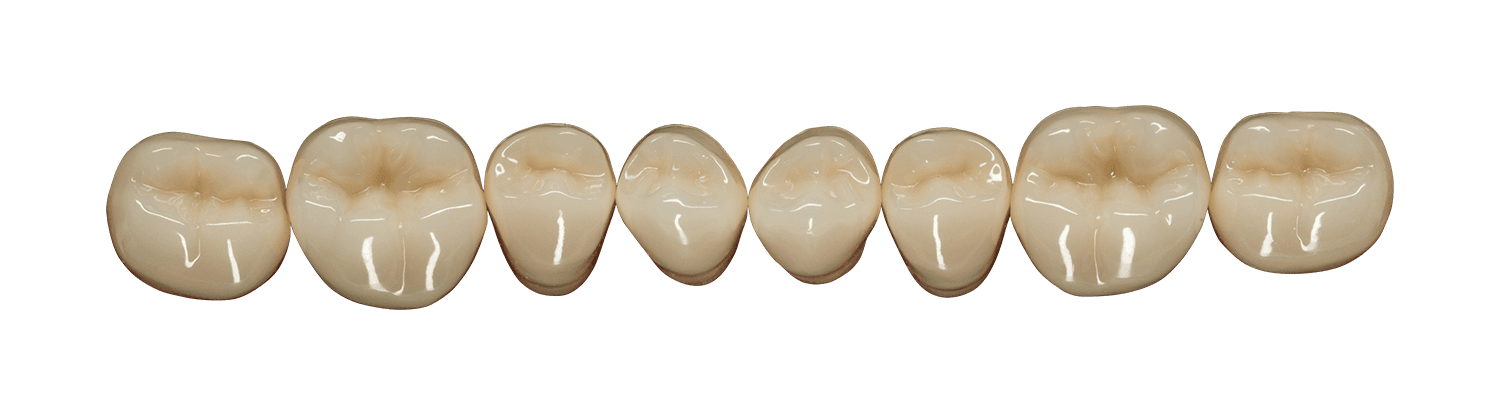

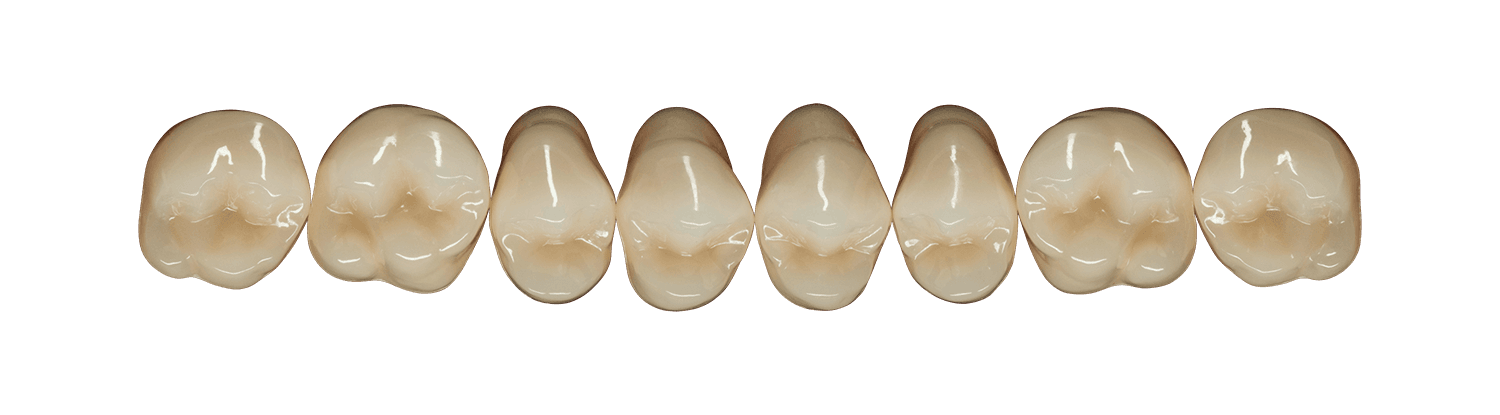

Platinum LU9

Platinum LL9

Optional

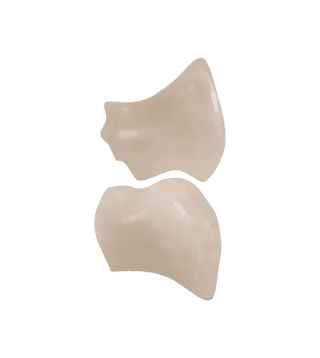

L9
X 36
U 11.1
Y 38
L 10.5

Legend

A Width of 6 anteriors on flat plane
B Lenght of central without collar
C Width of central
X The average width of 1x4 set
U The average depth of the left first molar
Y The average width of 1x4 set
L The average depth of the left first molar
Dimensions are expressed in millimeters

Articolations

Upper Anteriors	Lower Anteriors	Standard Posteriors	Optional Posteriors
L61	L71	L2	L6
L63	L73/L74	L3	L8
L64	L73/74	L3	L8
L67	L74/L75	L4	L9
L80	L71	L2	L6
L82	L73/L74	L3	L8
L84	L73/L74	L3	L8
L86	L74/L75	L4	L9
L93	L71	L2	L6
L95	L73/L74	L3	L8
L97	L73/L74	L3	L8
L99	L74/L75	L4	L9

Description

LEONARDO® PLATINUM is an excellent combination of aesthetics and naturalness, offering incredible vitality thanks to the incisal translucency and the natural gradation of color inside the body of the tooth.

5 layers design, with high molecular weight, Double Cross Link material and variety of shapes and shades, makes LEONARDO® PLATINUM suitable for restorations from an aesthetic and functional point of view.

The high molecular weight of the Double Cross Link material makes LEONARDO® PLATINUM with excellent wear and plaque resistance and polishing capability. Made in geometric shapes with innovative stratification, which facilitates the individualization in subtraction of the forms, without altering the constructive structure of the tooth itself. Made of acrylic material, it has differentiated rear shapes of Anatomical and Technical type.

Thanks to the hardness obtained from the use of DCL (DOUBLE CROSS LINK), Leonardo teeth are totally natural and unalterable over time.

The unique shape in the area of the collars of the anteriors teeth allow a better aesthetic adaptability in implant prostheses with underlying structure.

Available in A1-D4 color, in a complete assortment of 16 anterior and 12 posterior shapes.

LEONARDO® PLATINUM is the line designed to meet the most demanding needs of vitality and aesthetic naturalness required by patients.
